How lab pressurization actually works — and what most BAS designers miss.
The sash moves three inches and the lab has half a second to respond. Move slower than that, and containment breaks. The chemistry someone’s working on starts pulling toward the room instead of out of the hood. The researcher doesn’t notice. The IRB notices later. The next grant cycle notices last.
A water-quality lab has to trust its own air. So does a biosafety lab. So does a pharmacy compounding cleanroom and a research vivarium and an isolation room in a hospital. Trust here is the difference between containment that holds and containment that’s an aspiration.
Most labs run on commercial-grade BAS that wasn’t designed for any of this. The damper updates every thirty seconds; the sash moves every thirty seconds; nobody’s surprised when the math doesn’t work. Lab control is its own discipline. We learned it the hard way, then designed for it on purpose — it’s a real part of our building automation practice, not an afterthought to it.
Here’s what’s actually involved, where commercial BAS stops being enough, and how we put the whole thing on one front-end so the building’s operator doesn’t need a separate workstation just to know whether the fume hoods are holding.
What lab pressurization actually is
Lab spaces operate under negative pressure relative to the corridor. Typically −0.05 inches WC, give or take. The room exhausts more air than it gets supplied, which means air flows in from adjacent spaces and stays in the lab once it enters. Fumes don’t get out. Aerosols don’t get out. The math, room-by-room, is exhaust greater than supply by enough to hold the differential without overshooting.
A fume hood is the main demand on that math. Face velocity at the sash opening is typically held at 100 feet per minute — fast enough to draw contaminants in, slow enough that turbulence at the sash doesn’t bounce them back out. A six-foot hood with the sash open eighteen inches needs about 900 CFM at the exhaust valve. Open the sash to two feet and that climbs to 1,200. Close it to nine inches and it drops to 450.
The whole system moves with the sash. Every time. In every hood. Continuously.
If the room has biosafety cabinets, snorkel exhausts, and a general exhaust valve too (and most working labs do), that math gets more variables every time someone walks in the door. Each one has its own demand. The supply valve has to give back what the exhaust pulls. The plant has to be ready when the supply asks.
Containment isn’t a setpoint you hit and walk away from. It’s a control loop that runs while the lab runs.
Where the airflow control actually happens
The valves that do this work are not generic dampers. They’re pressure-independent airflow valves — purpose-built to hold a set CFM as upstream duct pressure changes, regardless of what’s happening downstream. The actuator moves in fractions of a second. The flow ramps up or down before the BAS would even know to ask.
Three manufacturers dominate this work in the US. Each does it differently.
| Accutrol AccuValve (our default) | Phoenix Controls | Critical Room Control (CRC) | |
|---|---|---|---|
| Mechanism | Two-chamber, two-blade design with Vortex airflow sensors and closed-loop electronic control | Venturi body with a spring-loaded, mechanically pressure-compensated cone | Damper-based control paired with ultra-precise room pressure sensing (down to 0.0001″ WC) |
| Pressure independence | Active. Microprocessor measures actual flow and modulates blade position | Passive. The mechanical assembly is the compensation; no electronics in the loop | Active. Room pressure measurement drives the ventilation response |
| Typical duct pressure | Low (~0.3″–0.6″ WC) | High (~0.6″–3.0″ WC) | Varies by application |
| What it measures | Actual airflow, continuously | Valve position only | Room pressure, with high precision |
| Energy profile | Lower fan HP, smaller motors, lower operating bill | Higher fan HP, larger motors, higher operating bill | Depends on the ventilation strategy |
| Track record | Newer technology, growing installed base | Decades of installed base since the 1980s; institutional default at many universities | Strong pressure-monitoring legacy; ventilation control product line is newer |
| Best fit | Most modern lab work: research, teaching, vivariums, healthcare, pharmacy | Owners standardized on Phoenix, or where extending an existing PI valve install is the right call | Critical-pressure spaces: BSL-3/4 containment, USP 797/800 pharmacy, isolation rooms |
All three work. The differences are real, and they matter to the energy bill, the BAS integration, and the math of long-term ownership.

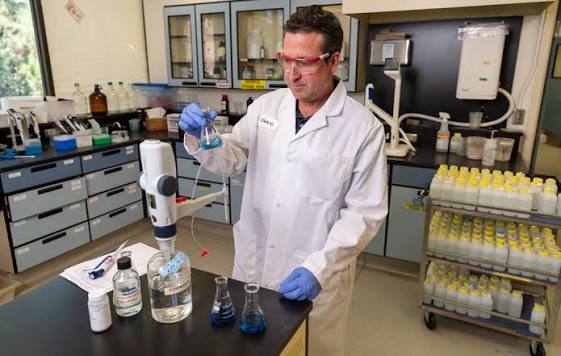

Accutrol is our default for most new lab work. The actual-flow measurement matters. When LADWP’s water-quality lab asks the BAS what its biosafety cabinet is doing, the answer is the actual CFM, not the inferred CFM from valve position. The lower duct pressure means smaller fans, smaller motors, and a lower operating bill across the life of the system. Closed-loop electronic control holds containment in sub-second response time as a sash moves. We installed Accutrol across hoods, biosafety cabinets, snorkel exhausts, and general exhaust at the LADWP Water Quality Laboratory in Pasadena. The front-end reports actual flow back to EBO for every valve in the building.
Phoenix Controls is the right call when the customer is already there. Forty years of installed base means a Phoenix-standardized owner has technicians, spare parts, and operating procedures already in place. Mechanical pressure independence has fewer points of failure in the valve body than any electronic system can match. At Keck Graduate Institute’s Building 535 in Claremont, we kept the existing Phoenix venturi valves and retrofitted them with fast actuators, then brought the fume hood controls into the EcoStruxure integration alongside the labs, the VRF, and the plant. We don’t tear out what works.
CRC is the answer when room pressure precision is the spec. Their pressure-sensing technology measures down to 0.0001 inches WC, orders of magnitude tighter than what general lab work requires. The use cases are BSL-3 and BSL-4 containment, USP 797 and USP 800 pharmacy compounding, and isolation rooms where holding the differential at exactly the published setpoint is the entire job.
The valve is a tool. We pick the one that fits the lab.
What commercial BAS misses
A commercial BAS is built for HVAC at the building scale: air handlers, chillers, terminal units, hot-water plants, zone thermostats. It polls every thirty seconds. It logs trends in five-minute intervals. It assumes that when the operator says “give me 70°F at this thermostat,” there’s no urgency in the response loop.
Lab controls don’t get that latitude. The sash moves now. The face velocity has to hold now. The fume-hood monitor has to indicate alarm now if containment fails. Sub-second response, room-by-room, valve-by-valve, on every sash event.
Where commercial BAS designers stop and where lab work has to keep going:
- Sash-driven loops. The sash sensor on each fume hood feeds the valve actuator on that hood directly, not through a BAS poll. The loop is local, fast, and dedicated. Commercial damper logic can’t keep up with sash dynamics.
- Actual flow versus inferred flow. Mechanical venturi valves report position, not flow. If the operator wants to know whether 900 CFM is actually moving through the hood, position alone won’t tell them. Electronic flow measurement (Accutrol) closes the loop with real data.
- Hood certification after install. Every hood gets tested at the sash, with the smoke, with the velocity probe, before the lab opens. A commercial install doesn’t budget for it. A lab install plans on it.
- Continuous monitoring versus annual testing. Lab controls watch containment second-to-second and alarm in real time. Annual hood certification is the legal floor. The operational standard is higher.
- The pane-of-glass question. When the fume hood alarms, is the BAS operator going to find out? Or does the lab manager need to call the front desk?
That last one is where the EBO integration carries the value.
EBO as the integration point
Two parallel control systems run in every modern lab. The lab control system operates at the valve and hood scale, with response times in fractions of a second. The building automation system operates at the AHU, plant, and zone scale, with response times in seconds to minutes. They have different control objectives, different update rates, and historically different vendors.
They don’t talk to each other natively. Most installs treat the lab system as a black box. The BAS maintains the duct pressure the lab system demands, and the lab system handles its own valves without telling anyone what it’s doing.
We integrate them. At LADWP and at Keck, we bring the lab controls into Schneider EcoStruxure Building Operation alongside everything else: AHUs, hot-water plants, VRF, VAV zones, exhaust fans. The lab valves stream their position, flow, and fault data into EBO via BACnet. The hoods stream their face velocity, sash position, and alarm state. EBO orchestrates the AHU response based on what the lab is actually demanding.
The operator sees one front-end. Fume hood alarms, AHU faults, plant trip status, VAV zone temperatures, all on one workstation with trends that correlate across systems. When the lab demands more exhaust at 11 AM, the operator can see the AHU response and the plant load on the same chart at the same timestamp.
That’s the integration our building automation practice was built for, and it’s what separates a lab BAS from a building BAS that happens to live near a lab.
What to ask your current BAS provider
If you’ve got a lab that’s running on commercial BAS and you’re not sure it’s holding, four questions for your provider:
- What does the BAS see when a sash moves? If the answer is “we poll the valve every thirty seconds,” the BAS isn’t seeing the sash event in real time. The hood is on its own.
- Do your valves report actual flow, or just position? Position-only works in a stable system. In a dynamic lab, it’s a guess.
- What’s the duct pressure setpoint, and what’s the fan horsepower required to hold it? Higher pressure equals higher operating cost. There may be a better valve for the energy bill.
- Where does the fume hood alarm go? If the answer is “the local hood monitor,” that’s the legal minimum. Best-in-class integration puts that alarm on the operator’s screen.
Beyond LADWP and Keck, our lab portfolio includes BioScience LA’s adaptive reuse of the old Culver City courthouse — design-build mechanical and controls turning a 1970s judicial building into a life-sciences incubator — and the LA County Coroner’s Medical Examiner Building, where we converted a legacy double-duct system to DDC controls in an actively occupied facility.
We work in labs across Southern California: water quality, biosciences, pharmacy compounding, healthcare isolation. If your facility is running on a control stack that wasn’t designed for it, we’ll come look.
